INTRODUCTION

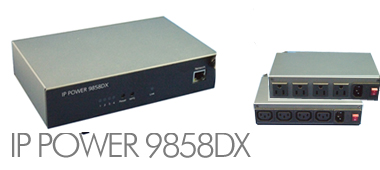

4 port Remote power control via web browser of PC/Smartphone (Windows, Android iOS) HTTPS/SSL, High grade components, Auto Ping, Schedular (29 rules) POP3 Control Power ON/OFF, Email, Low Temperature, QR code easy login for smartphone, OWN Langrage developing. free Android APP to control directly without port fporwarding/port mapping. IP Power 9858DX is a new generation of the Power Distribution Unit (PDU) Remote Power Control (RPC) system. With embedded web server and HTTPS protection, 9858DX supports higher grade security as working on Internet. User can control power easily and more safely through the web browser on Windows PC or on Smartphone like Internet Explorer, Firefox, Google Chrome, Safari (iOS) and Android system. 9858DX allows user to remote control power up to 4 separate devices ON/OFF via network. As support SSL SNMP, user can use public email like Gmail/Hotmail/Yahoo Mail to get the email as the ON/OFF status change. User can also control by e-mail without doing port forwarding/port mapping and search the other IP Device in webpage directly. Besides control through web browser, there is Android Apps name "IP Power" for Android user to control the outlet power turn ON/OFF directly without port forwarding or port mapping, Not only control manually, 9858DX supports Auto Ping, Time Scheduler (29 rules), LOG SYSLOG - send log info. to assign IP(IP address which is more suitable for factory/office/home automation. 9858DX also can work under low temperature range at -20 ~ 60°C or -4 ~ 140°F and search other IP Power device in LAN/WAN in 9858DX webpage (IP manager). For system integrator, there are several popular developing tolls like TelNet, SNMP(MIB) and HTTP Command (SDK) for 2nd development. User van develop OWN langrage in device webpage directly. The various applications of the 9858DX includes : Power Management, Server Management, Internet Controllable Timer, System Integration, Remote Power Control in Remote locations.... etc. User Friendly. Convenience Powerful !
FEATURES
- Embedded HTTP web browser interface, the Remote control without special software.
- 4 ports Remote power controller for power On, Off and Reboot.
- Web Server built-in design, directly control by web browser - PC Smart phone :
- Internet Explore, Firefox, Google Chrome, Safari - iPhone and Android browser of smart phone. (WIN, Android iOS).
- Android Apps "IP Power" - free supply
- Controls the outlet power ON/OFF without port fprwarding/port mapping
- Quick search in LAN/WAN (liek IPEDIT IP Serice) - Support HTTPS, SSL, TCP/IP, PPPOE, DHCP, DDNS, SMTP, Telnet SNMP.
- Power Surge protection FUSE embedded in
- SYSLOG : Support Log function send to assign IP address
- Time Schedule - can pre-set a suitable time to turn power on/off automatically.
- Auto Ping for auto control management.
- HIgh grade components for long stability.
- Back Up function for quick setup for multiple devices like Time Schedule, Network Setting
- Support public e-mail -- @gmail.com, @yahoo.com, @hotmail. com....etc.
- E-mail Control Advice :
- Receive Email with IPs device boot up.
- POP3 Control : Control each outlet ON/OFF through E-mail.- No Need port forwarding. - Support Low Temerature : -20 ~ 60°C or -4 ~ 140°F
- pecific software developed by Aviosys and provided free of charge :
- SDK Available : HTTP Command
- IP Power Center - for control multiple Aviosys IP devices in same software
- CNT software (Cross Network Technology)- allows user eliminate set up work on any Router without port forwarding, simply Plug Play.
- Develop own langrage in 9858DX device webpage
SPECS
| Dimensions | 220 * 120 * 45mm |
| Power input | 100~240VAC |
| Maximum current per outlet | 8A |
| Maximum current total 4 outlets | 10A |
| Interface | 4 LED indicator lights HW Reset button WPS button |
| Working temperature | 0~50°C |
| Network | RJ-45 10/100Mb Ethernet port |
